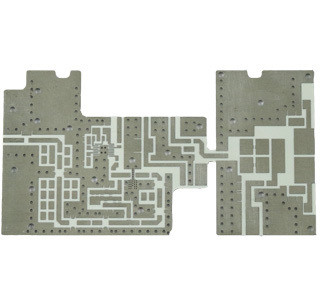

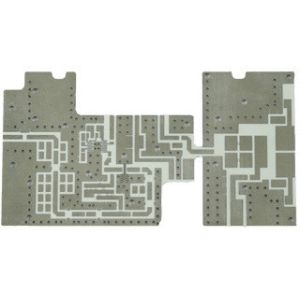

Taconic 2 Layer PCB High Frequency Circuit Boards Prototype
PCB details:
Number of layers: 2
Material: Taconic
Board thickness: 2.0mm
Surface treatment: Immersion gold
Minimum aperture: 0.20mm
Outer line width/line spacing: 5/5mil
Inner line width/line spacing: 4/4mil
Features: high frequency circuit board
Rapid-Prototype Taconic RF PCBs | China's Premier 2-Layer High-Frequency Solution
Need signal-integrity-focused 2 Layer PCB prototypes for antennas, filters, or RF modules? As a specialized China Factory, we deliver precision Taconic High Frequency Circuit Boards engineered for GHz+ performance – with 5-day prototype turnaround.
Why Engineers Choose Our Taconic 2-Layer PCBs:
✅ Premium Taconic Laminates: RO3003™/RO4350B™ with stable Dk=3.0-3.66 @ 10GHz (±0.05 tolerance)
✅ Zero-Compromise Prototyping: 1-10 pcs built in 72hrs | No NRE fees | DFM analysis included
✅ China Cost, Global Standards: ISO 9001:2015 | IPC Class 3 | 100% impedance testing (±5%)
✅ High-Frequency Optimized: Laser-cut 0.2mm vias | 1OZ copper | Low-loss surface finishes (ENIG/Immersion Silver)
✅ Critical Applications: 5G test jigs | IoT transceivers | Radar sensors | RFID systems
Prototype Advantage:
• 24hr DFM Feedback: Our engineers optimize your Gerbers for Taconic performance
• Material Flexibility: RO4000®/TLX series laminates stocked
• Testing Included: TDR reports | VSWR validation | S-parameter analysis
No MOQ | US/EU Technical Support | Secure IP Protection
Automotive-Grade 77GHz Taconic PCBs | China’s High-Frequency Prototype Specialists
Pushing mmWave radar resolution limits? Our China Factory delivers Taconic High Frequency Circuit Boards engineered for 24/77/79GHz ADAS systems – with certified automotive reliability.
Why Global Tier 1s Trust Our 2-Layer Taconic Prototypes:
✅ AEC-Q200 Validated Materials: RO4835™ laminates with stable εr=3.48 @ 10GHz (±0.05) & <0.0037 loss tangent
✅ Zero-Error mmWave Performance:
±2% impedance control @ 80GHz
Laser ablation for 75μm antenna arrays
Plasma-etched via walls for consistent phase response
✅ Automotive Process Rigor:
TS 16949 compliant production
100% thermal shock testing (-55°C to +150°C)
PPAP documentation support
✅ 15-Day PPAP Prototyping: Functional 2-layer radar PCBs with material certs & S-parameter reports
Critical Applications:
• 77GHz MIMO Radar Antennas
• Blind Spot Detection PCBs
• Automotive V2X Communication Modules
• Drone Altimetry Sensors
Prototype-to-Production Advantage:
✧ Free DFM for Taconic: Avoid resonance/PTFE delamination risks
✧ EM Simulation Support: HFSS models for array optimization
✧ IP-Sealed Supply Chain: NDAA-compliant material traceability
